48v 100ah 200ah pakêta pîlê 48v 100ah 200ah bi hêzek hîbrid a malê ya ku li dîwarê hilanînê siwarkirî ye lîtyuma rojê ya veşarjkirî

2023-08-18 06:01

Berçavkirin

Model No	AIN HP5.1L-A1	AIN HP7.6L-A1	AIN HP10.2L-A1
Nominal Parameters
Woltî	48/51.2V	48/51.2V	48/51.2V
Kanîn	100Ah	150Ah	200Ah
Înercî	5.12kwh	7.68kwh	10.24kwh

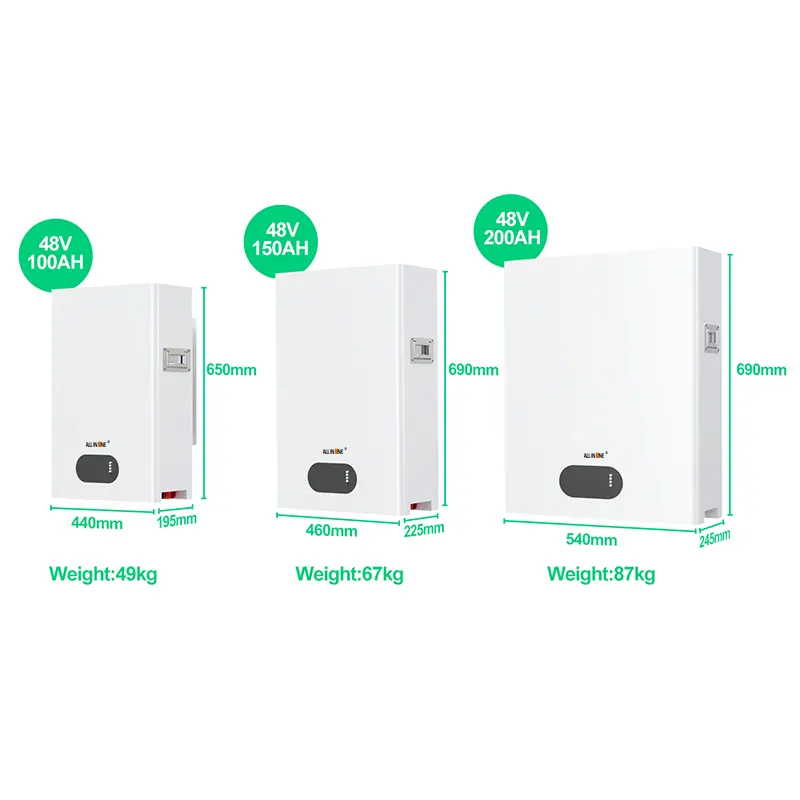

Dimensions (L xWxH)	440x695x195mm	460x690x225mm	540x690x245mm
Pîvan	49kg	67kg	87kg
Parametreyên bingehîn
Life Times (25C)	20 Years	20 Years	20 Years
Life Cycles (80% DOD, 25°C)	5000 Cycles	5000 Cycles	5000 Cycles
Storage Time /Temperature	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C
Germahiya Operasyonê	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity
Germahiya hilanînê	0°C ber 45°C @60+/-25% Nemahiya nisbî	0°C ber 45°C @60+/-25% Nemahiya nisbî	0°C ber 45°C @60+/-25% Nemahiya nisbî
Battery Lithium Standard	1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3
Enclosure Protection Rating	IP31Rating
Electrical Parameter
Operation Voltage	40-57.6Vdc	40-57.6Vdc	40-57.6Vdc
Max charging Voltage	58Vdc	58Vdc	58Vdc
Max charging and Dis charging Current	100A	150A	200A
Max Power	5120W	7680W	10240W

Fabrîkaya me

ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.

FAQ

Q: Ma hûn pargîdanî an çêkerê bazirganiyê ne?
A: We are ALL IN ONE original factory.

Q: Ma ez dikarim nimûneyên ceribandinê bikim? Time ji bo fermana nimûne çi wextê pêşeng e?
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

Q: Ma hûn karûbarê piştî firotanê peyda dikin?
A: Erê, misogerî 12 meh e, heke di vê qonaxê de ti pirsgirêkên qalîteya di destê me de hebin, em dikarin wekî nû bişînin şûna xwe.

Q: Ma hûn OEM / ODM qebûl dikin?
A: Erê, ew heye.

Q: Hûn kapasîteya rastîn a batterê ne?
A: Hemî hucreyên baterî yên me bi Grade A, 100% nû û kapasîteya rastîn.

Q: Ma kîjan sertîfîkayên we hene?
A: Heke hejmar emrê we mezin be, em dikarin CE, ROHS, FCC, IEC62133, MSDS, UN38.3 peyda bikin.

Q: Ma we MOQ heye?
A: Bêsîn. Fermana piçûk jî bi xêr hatî. Pirrjimar bi bihayê çêtir heye, em ê bihayê çêtirîn ji bo we kontrol bikin.

Q: Weha dravdana we çi ye?
A: Em riya T / T, Paypal, Alibaba û hwd qebûl dikin.

Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
