51.2v 65Ah selika golfê jiyanapo4 pakêta pîlê îyona lîtium çerxa kûr IP67

2024-06-28 03:25

Berçavkirin

Cins	AIN51105W	AIN51105S	AIN5165S	AIN51150S	AIN76105S
Voltaya Nomînal	51.2V	51.2V	51.2V	51.2V	76.8V
Kapasîteya nomînal	105Ah	105Ah	65Ah	150Ah	105Ah
Rated Energy	5370Wh	5370Wh	3320Wh	7680Wh	5370Wh
Maximum Charge Voltage	58.4V	58.4V	58.4V	58.4V	87.6V
Nêzîktêdayê Mezîn	100A	100A	60A	150A	100A
Berfirehkirina Bêdengî ya Berfirehtirîn	150A	150A	130A	200A	200A
Maximum Peak Discharge Current (30 seconds)	300A	300A	250A	300A	300A
Voltagera Qutkirina Barkirinê	43.2V	43.2V	43.2V	43.2V	43.2V
Driving Mileage	65-80km	65-80km	40-60km	90-120km	100-130km
Germahiya barkirinê	0 ~ + 55	0 ~ + 55	0 ~ + 55	0 ~ + 55	0 ~ + 55
Temaya germkirinê	-20 ~+60	-20 ~+60	-20 ~+60	-20 ~+60	-20 ~+60
Cycle Life (25℃, 0.5C, 100% DOD)	> 6000	> 6000	> 6000	> 6000	> 6000
Terminals	M8 Nut	M8 Nut	M8 Nut	M8 Nut	M8 Nut
Asta Parastinê	IP67	IP65	IP65	IP65	IP65
Dimensions(mm)	547*334*245	457*298*253	465*243*228	675*325*260	674*338*275
Pîvan	48.3kg	49kg	32kg	71kg	72.8kg
Communication Protocol	CAN/RS485	RS485	RS485	CAN/RS485	CAN/RS485



Taybetmendiyên sereke

1, PET is able to bear 850kg, avoid bulging

2, CCS vehicle-grade craft,integrated wires

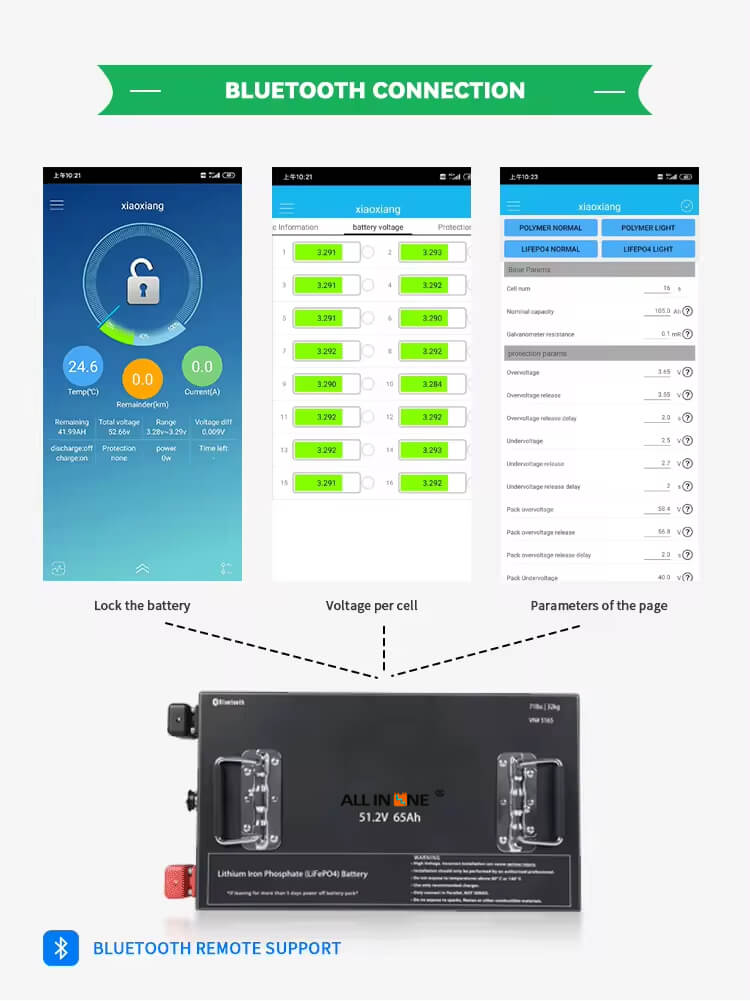

3, Support RS485/CAN/Bluetooth etc

4, 3-4mm metal plates at both side

5, Reserve 1mm width for potential bulging

6, Distributed sampling system to solve sampling impedance problem.

Em Soz didin
1.Hemû hilber dê bibin 100% ceribandin berî barkirinê da ku pê ewle bibin ku hilberê ti pirsgirêkên kalîteyê tune.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.



Bikaranînî

Fabrîkaya me

Packing And Shipping

FAQ

Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.

Q2: Ma hûn xizmeta piştî-firotanê peyda dikin?
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.

Q3 Baweriya pargîdaniya we çi ye?
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service

Q4: Ma hûn OEM / ODM qebûl dikin?
A4: Yes, it is available.

Q5: What is your lead time for mass production?
A5: Axaftina gelemperî, piştî ku dravdan û pejirandina di derheqê nimûneyan de, li dor tiştên cuda girêdayî tiştan e.

Q6:Are your battery real capacity?
A6: Hemî şaneyên bataryaya me bi Grade A, 100% kapasîteya nû û rastîn.

Q7: Ma hûn kargeh an pargîdaniyek bazirganî ne?
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.

Q8: Çi celeb belgeyên we hene?
A8: Ger hejmariya we ya emrê mezin be em dikarin CE, ROHS, FCC, IEC62133, MSDS, UN38.3 peyda bikin.
