Pîlika lîtiumê 36V 48V 72V 50ah 80ah 100ah 36V 48V 72V 50ah 100ah ji bo selika golfê ya RV

2024-03-15 02:39

LiFePO4 Battery for Golf Cart ( OEM/ODM ) TECHNICAL SPECIFICATION
Data sheet	Voltaya Nomînal	Kapasîteya nomînal	Nominal Energy	Ebat	Pîvan
36V  (Support Customized Capacity/Size)
LFP36-50	38.4V	50Ah	1920Wh	522*238*218mm	≈18.5kg
LFP36-60	38.4V	60Ah	2304Wh	522*238*218mm	≈21kg
LFP36-80	38.4V	80Ah	3072Wh	522*238*218mm	≈25.5kg
LFP36-100	38.4V	100Ah	3840Wh	522*238*218mm	≈31kg
48V  (Support Customized Capacity/Size)
LFP48-50	51.2V	50Ah	2560Wh	522*238*218mm	≈25kg
LFP48-60	51.2V	60Ah	3072Wh	522*238*218mm	≈31kg
LFP48-80	51.2V	80Ah	4096Wh	522*238*218mm	≈32.5kg

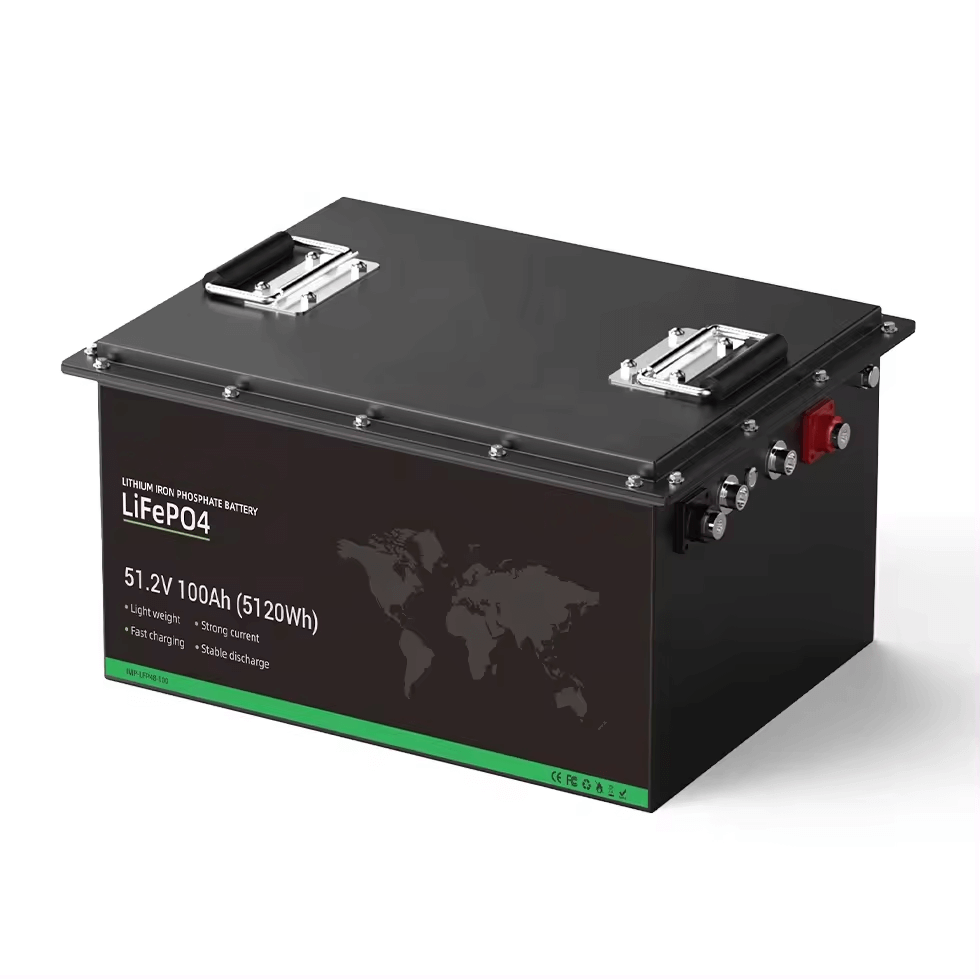

LFP48-100	51.2V	100Ah	5120Wh	640*245*220mm	≈38.5kg
72V (Support Customized Capacity/Size)
LFP72-50	76.8V	50Ah	3840Wh	470*330*150mm	≈50kg

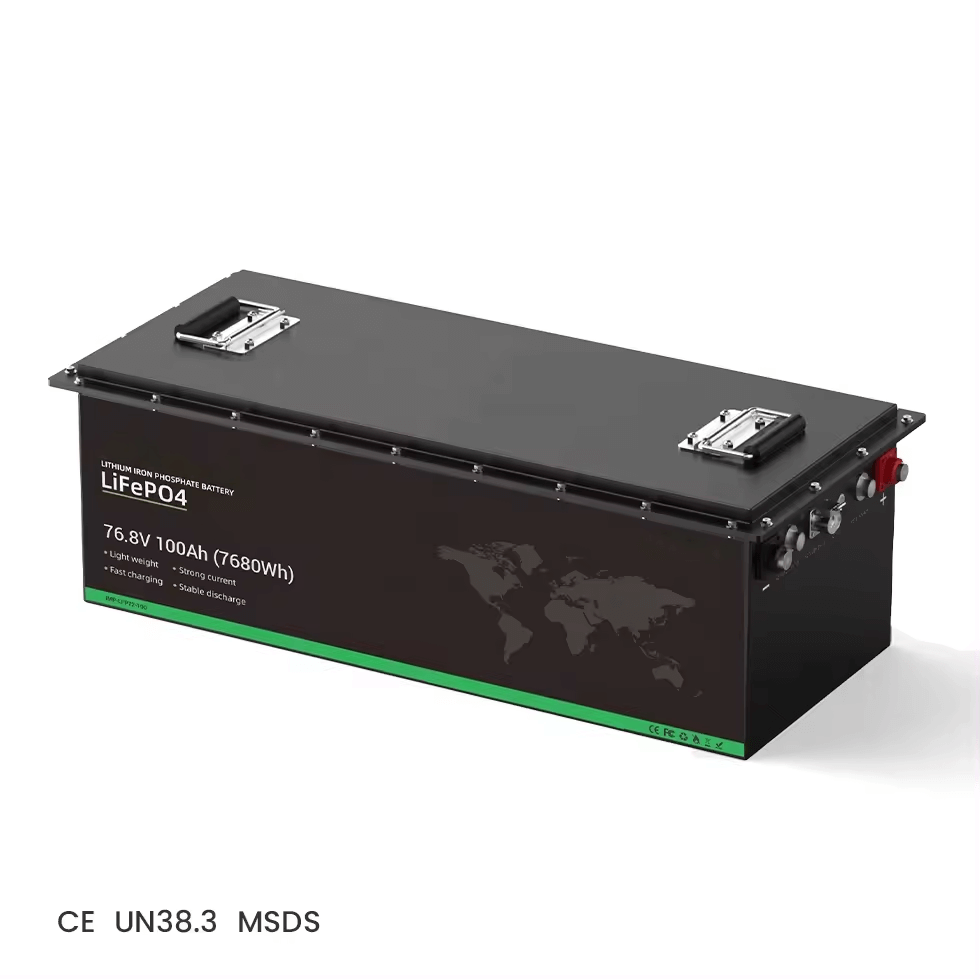

LFP72-100	76.8V	100Ah	7680Wh	730*350*150mm	≈65kg
General
Çêrokên Jiyanê		≥6000 cycles (80%DOD), at 25°C
Germahiya barkirinê		0 ~ 45°C (32 ~ 113°F)
Temaya germkirinê		-20 ~ 55°C(-4 ~ 131F)
Germahiya hilanînê		-10 ~ 45°C(14 ~ 113°F)
Communication Mod		Vehicle CAN/ Charge CAN/ Intranet CAN/ 485 communication/ Wireless communication

The Right Choice

1. ALL IN ONE lithium batteries are drop-in solutions

2.Outlasts equivalent lead-acid batteries

3.Top quality standards and proven results in many applications

Birêvebirinî

1. Single battery operation
2. Little or no voltage drop
3. Fast travel speed at all levels of discharge

ALL IN ONE Battery Safety and Sustainability

1. No acid fumes or spills
2. Reduce use of electricity
3. Less waste
4. 99% recyclable

Bikaranînî

Fabrîkaya me



Ppingandin û Pakkirin

1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. Ji bo fermana mezin, ji hêla AIR an OCEAN ve hatî şandin.

FAQ

Q: Ma hûn pargîdanî an çêkerê bazirganiyê ne?
A: We are ALL IN ONE original factory from Anhui Province , China.

Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

Q: Ma ez dikarim nimûneyên ceribandinê bikim? Time ji bo fermana nimûne çi wextê pêşeng e?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

Q: Ma hûn OEM / ODM qebûl dikin?
A: Yes,it is available.We have OEM group to design battery case.

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
A: ERÊ, Serlêdan dihêle hûn di her kêliyê de voltaja her yekê bixwînin.

Q: Hûn kapasîteya rastîn a batterê ne?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

Q: Ma kîjan sertîfîkayên we hene?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

Q: Ma we MOQ heye?
A: Bêsîn. Fermana piçûk jî bi xêr hatî. Pirrjimar bi bihayê çêtir heye, em ê bihayê çêtirîn ji bo we kontrol bikin.

Q: Weha dravdana we çi ye?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。

Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Bikaranîna şarjkerên lîtiumê ji bo hişyarkirina pîlê. Chargera lîtiumê bataryayên xwe bixwe şiyar dike.
