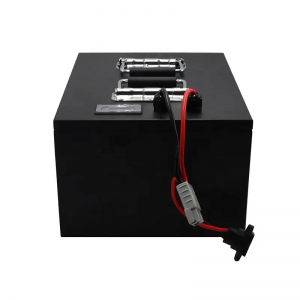

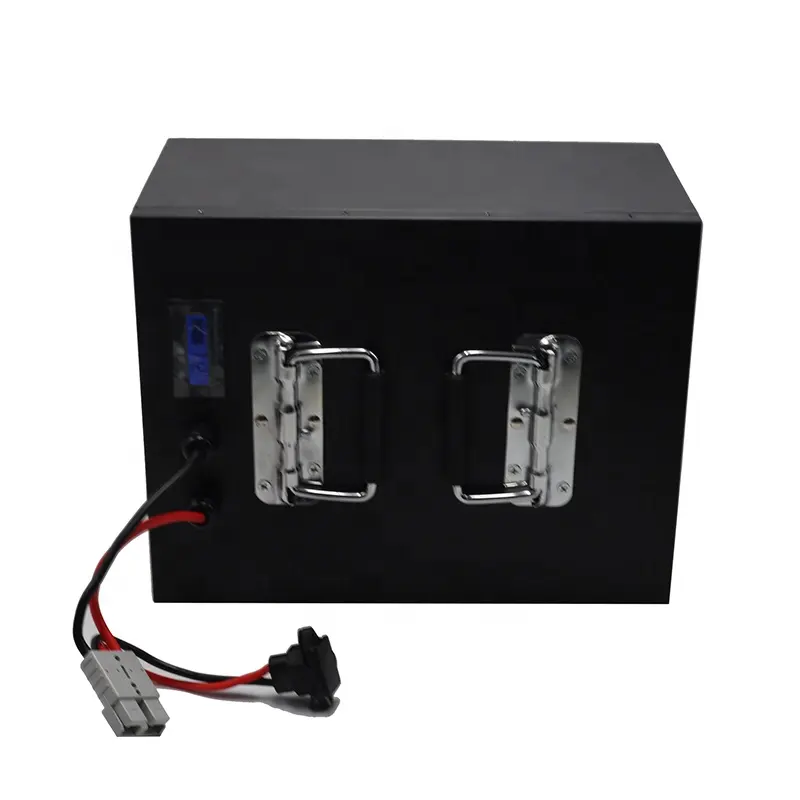

Ji bo Otomobîlên EV-ê Pakêta Pîlê LiFePO4-ya Xweserkirî 72v 60ah Pîl Bateriya Wesayîta Elektrîkî ya Lithium Ion

2023-06-06 02:13

Berçavkirin

Navê markaH INN TEN
CinsAIN7260
Libersekînîn5 Sal
Voltaya Nomînal76.8V
Kapasîteya nomînal[email protected]/customize
Înercî4416Wh
Berxwedana Navxweyî≤50mΩ
Jiyana ikakî4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Xwe BelavkirinMonth3,5% mehê di 25 de
Max. Voltage Charging87.6 V
Moda gingarjkirinêAt 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Karanîna niha30A
Max. Barkirina heyî60A
Valakirina heyî30A
Max. discharge Continuous Current60A
Max.Pulse Current120A(<3S)
Voltaja Qutkirî Dakêşandin60V
Germahiya barkirinê0 ℃ heya 45 ℃ (32 ℉ heya 113 ℉) @ 60 ± 25% Nermiya Nêzîkî
Temaya germkirinê-20 ℃ heya 60 ℃ (-4 ℉ heya 140 ℉) @ 60 ± 25% Nermiya Relatîf
Germahiya hilanînê0 ℃ heya 45 ℃ (32 ℉ heya 113 ℉) @ 60 ± 25% Nermiya Nêzîkî
Berxwedana Toza AvêIP55
Hucre & FormatLFP  60AH 24S1P/customize
DozMetal Case
Mezinahî (L * W * H * TH)xweşkirin
Pîvan50kg
Rawesta paşînM6 or Anderson or another bolt screw
Peak discharge current BMS60A
High temp port. Low temp port.over charge port. over discharge port.
Methodê barkirinêCC / CV
Terminal TypeM6 or Anderson or another bolt screw/customize
ŞehadeCE, RoHS ,MSDS and UN38.3 certification
applicationsGolf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric
Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Inderîretî kirin

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Bikaranînî

Fabrîkaya me

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Packing And Shipping

Bixçe

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

Andina

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



FAQ

Q: Divê ez çawa bidim? Hûn kîjan awayên dravê qebûl dikin?
A: T/T, PayPal, Western Union.

Q: Ma emrê nimûneyê tête pejirandin?
A: Erê, ji bo piraniya bataryayan, fermanên nimûneyê ji bo ceribandina kalîteyê maqûl û qebûlkirî ye.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. Ji bo zirara ku çêdibe, wek bermayiya baterî/welded, pakêta bateriyê bêyî parastina BMS ku ji ber barkirinê çêbûye.

Not: Em hilberînerê bateriyê ne. Hemî hilber firotanê piştgirî nakin, em tenê karsaziya B2B dikin. Ji kerema xwe ji bo bihayên hilberê bi me re têkilî daynin!
