Prismatic Lifepo4 Battery 3.2V 90Ah

2023-06-13 02:44

Berçavkirin

#	Şanî			Parametre	Bingotin
1	Kapasîteya nomînal			90Ah	(25±2)°C, Standard Charge And Discharge
2	Typical Voltage			3.2V
3	AC Impedance Resistance(1KHz)			.50.5mΩ
4	Standard Charge And Discharge	Charge/Discharge Current		1C/1C	(25±2)°C
		Cut Off Voltage Of Charge/Discharge		3.65V/2.5V
5	Maximum Charge/Discharge Current	Continuous Charge/Discharge		1C/1C	According to continuous/ pulse charge and discharge ammeters
		Pulse Charge/Discharge(30s)		3C/3C
6	Recommended Scope Of SOC			10%~90%	N.A
7	Germahiya barkirinê			0°C~55°C	According to continuous/ pulse charge and discharge ammeters
8	Germahiya Germkirinê			-20°C~55°C
9	Germahiya hilanînê		Short Term ( Within 1 month)	-20 ° C ~ 45 ° C	N.A
			Long Term ( Within 1 year)	0 ° C ~ 35 ° C
10	Storage Humidity Range			<95%
11	Self-discharge rate per month			≤3%/month	Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC
12	Ebat		Berî	130.3±0.5mm	Refer to Appendix ǀ
13			Thickness( 30% SOC)	36.7 ± 0.5mm
14			High( Total)	200.5 0.5mm
15			High（ Subject）	195.5 ± 0.5mm
16			Tabs Distance	67.0 ± 1.0mm
17	Wehya batterê			1994±50g

Attentions

• It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
• Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
• Do not short connect or install the battery with incorrect polarity at any time.
• Do not mix up with cells from different models or manufacturers.
• Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
• Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
• Please wear protective devices such as rubber gloves when operating the battery.

Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.

Bikaranînî

Fabrîkaya me

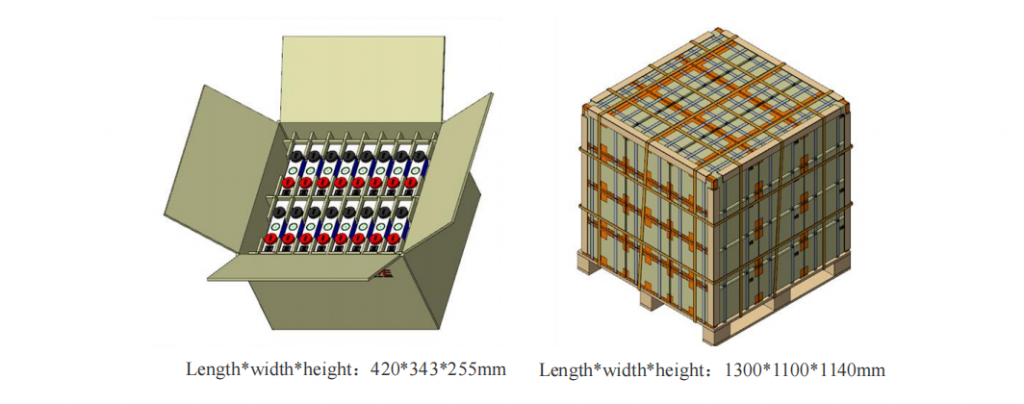

Packing And Shipping

The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.

Embarkirinî

Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ～ 50%SOC.

FAQ

Q1. Ma ez dikarim fermanek nimûne bikim?
A. Erê, em ji fermana nimûneyê pêşwazî dikin ku kalîteyê ceribandin û kontrol bikin.

Q2. Abouti li ser dema rêberiyê?
A. Sample 3 rojan hewce dike, wextê hilberîna girseyî 5-7 hefte hewce dike, ew bi hêjeya fermanê ve girêdayî ye.

Q3. Ma tu sînorên MOQ heye?
A. Erê, me ji bo hilberîna girseyî MOQ heye, ew bi hejmarên cihêreng ve girêdayî ye. Fermana nimûne ya 1 ~ 10pcs heye. Kêm kêm MOQ, 1pc ji bo kontrolkirina nimûneyê heye.

Q4. Tu çawa bargiraniyê çêdike û çiqas dirêj dike ku ew bigihîje?
A. Bi gelemperî digihîje 5-7 rojan. Veguhestina balafirgeh û deryayê jî vebijarkî ye.

Q5. Meriv çawa fermanê bide?
A. Berî her tiştî daxwazên an serlêdana me bidin me. Ya duyemîn, em li gorî daxwazên we an pêşniyarên xwe radigihînin. Tiştê xerîdar nimûneyan piştrast dike û ji bo fermana fermî drav dide. Aremîn Em hilberînê li hev dikin.

Q6. Baş e ku logoya min li ser hilberê çap bike?
A. Erê. Ji kerema xwe berî hilberîna me bi fermî agahdar bikin û sêwirana yekem li ser bingeha me ya pêşîn piştrast bikin.

Q7.Tu kîjan sertîfîkayên we hene?
A: Em CE / FCC / ROHS / UN38.3 / MSDS ... hwd.

Q8.Hi derheqê garantiyê?
A: 3 sal ermanî
